Local: guangzhou wenbao bank equipment co.,ltd >> Luxury Indoor Silver Wooden Column Speaker

Name:

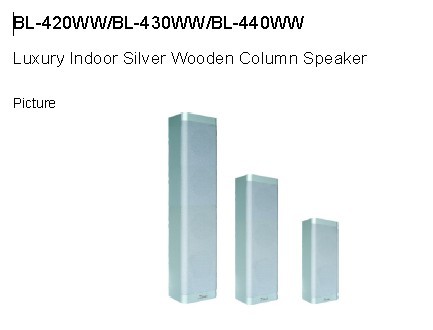

 Luxury Indoor Silver Wooden Column Speaker
Moble:
 BL-420WW BL-430WW BL-440WW
Memo:
 Larger picture
      Previous:  No products
             Next:  Outdoor Large Size Magnalium Column Speaker

　Product explanation

点击新窗口打开大图

Model No.
BL-420WW
BL-430WW
BL-440WW
Rated Power
10/20W
15/30W
20/40W
Line Voltage
70/100V
Freq. Resp.
85Hz - 15kHz
Sensitivity
90±2dB
92±2dB
95±2dB
Connection
Black tips (2 pcs）- COM；red tip（UP）- 70V；red tip（DOWN）- 100V
Speaker (treble)
2.5”/4Ω/5W x 1pc
Speaker（bass）
5”/8Ω/5W x 1pc
5”/8Ω/5W x 2pcs
5”/8Ω/5W x 3pcs

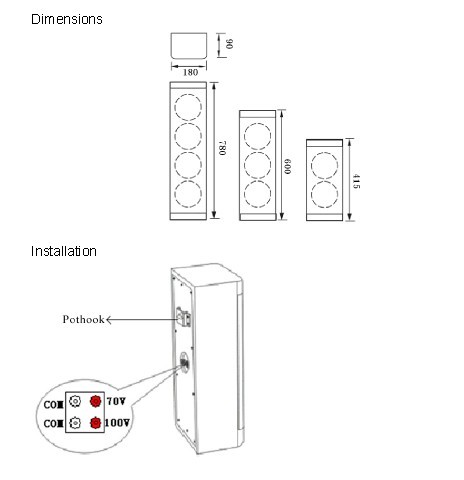

Installation
Wall-mount
Dimensions
415*180*90mm
600*180*90mm
780*180*90mm
Package Size
470*290*250mm
630*290*250mm
835*290*250mm
N.W
2.8kg
4.3kg
5.1
G.W
6.4kg
10.1kg
11.2kg



点击新窗口打开大图

点击新窗口打开大图
