Model No. |
BL-710W |
BL-720W |
BL-730W |
BL-740W |
|
Rated Power |
10W |
20W |
30W |
40W |
|
Line Voltage |
70/100V |
|
Freq. Resp. |
140Hz - 13kHz |
|
Sensitivity |
94±2dB |
95±2dB |
96±2dB |
97±2dB |
|
Connection |
black |
COM |
|
yellow |
70V |
70V |
70V |
70V |
|
red |
100V |
100V |
100V |
100V |
|
Speaker Size |
2.5”/4Ω/3W |
|
Speaker QTY |
2 |
4 |
6 |
8 |
|
Installation |
Wall-mount |
|

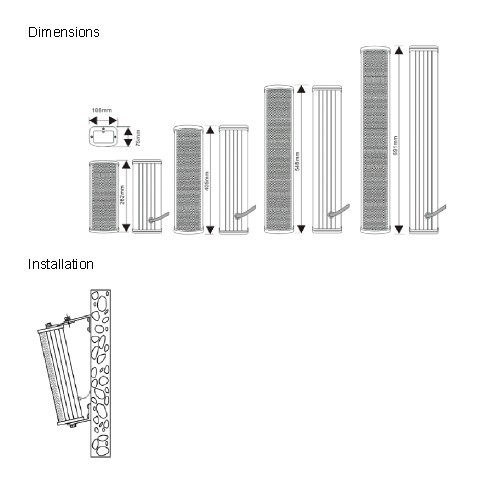

Dimensions |
262*106*75mm |
405*106*75mm |
548*106*75mm |
691*106*75 |
|
Package Size |
320*220*150mm |
450*220*150mm |
605*220*150mm |
740*220*150mm |
|
N.W |
1.3kg |
1.7kg |
2.3kg |
3kg |
|
G.W |
3kg |
4kg |
5.3kg |
6.8kg |
|
|
|
