Model No. |
BL-920W |
BL-940W |
BL-960W |
BL-980W |
|
Rated Power |
10/20W |
20/40W |
30/60W |
40/80W |
|
Line Voltage |
70/100V |
|
Freq. Resp. |
150Hz - 14kHz |
|
Sensitivity |
99±2dB |
102±2dB |
103±2dB |
105±2dB |
|
Connection |
Black tip |
COM |
|
Yellow tip |
70V |
70V |
70V |
70V |
|
Red tip |
100V |
100V |
100V |
100V |
|
Installation |
Wall-mount |
|
Speaker (Treble) |
2.5”/4Ω/5W x 2pc |
|
Speaker (Bass) |
4”/8Ω/10W x 2pc |
4”/8Ω/10W x 4pc |
4”/8Ω/10W x 6pc |
4”/8Ω/10W x8pc |
|

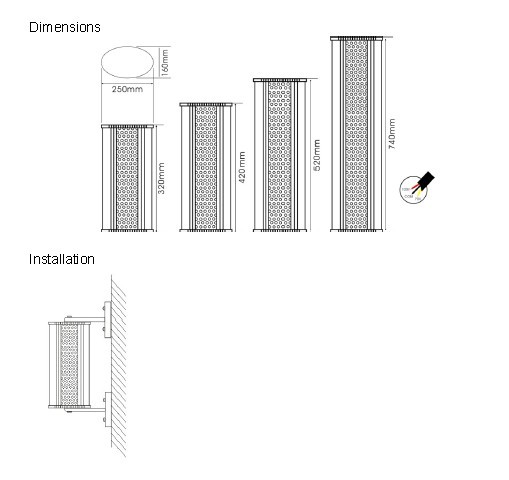

Dimensions |
320*250*160 |
420*250*160 |
520*250*160 |
620*250*160 |
|
Package Size |
320*220*150mm |
450*220*150mm |
605*220*150mm |
740*220*150mm |
|
N.W |
4.3kg |
5.5kg |
8kg |
9.4kg |
|
G.W |
10kg |
12.6kg |
17kg |
20.2kg |
|
|
|
