Local: guangzhou wenbao bank equipment co.,ltd >> Wall-mount Speaker BL-125B/W

Name:

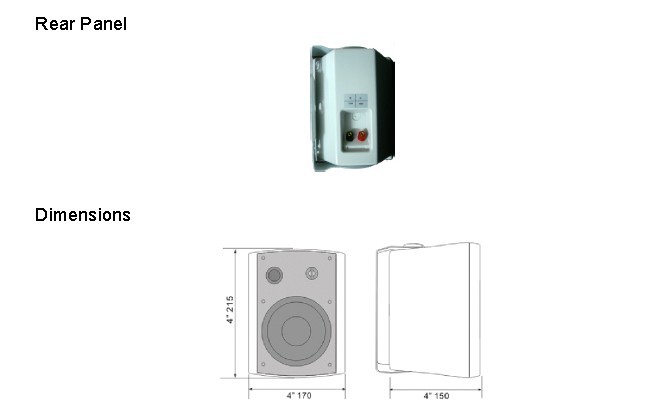

 Wall-mount Speaker BL-125B/W
Moble:
 BL-125B/W
Memo:
 Larger picture
      Previous:  Miniature Ceiling Speaker BL-513A
             Next:  Wall-mount Speaker BL-121

　Product explanation

点击新窗口打开大图

Model No.
BL-125B (black)
BL-125W (white)
Max. Power
20W
Line Voltage
70/100V
Freq. Resp.
70Hz-20kHz
Sensitivity
89±3dB
Speaker size
4”, Φ102mm
Connection Port
Black tip：COM         red tip：20W
Dimensions
215*170*150mm
Package Size
250*185*160mm
N.W
1.9kg
G.W
2kg

点击新窗口打开大图

Model No.
BL-126B (black)
BL-126W (white)
Max. Power
30W
Line Voltage
70/100V
Freq. Resp.
75Hz-20kHz
Sensitivity
90±3dB
Speaker Size
5”, Φ127mm
Connection Port
Black tip：COM           red tip：30W
Dimensions
242*182*162mm
Package Size
260*210*170mm
N.W
2.6kg
G.W
2.8kg

Model No.
BL-128B
BL-128W
Max. Power
40W
Line Voltage
70/100V
Freq. Resp.
80Hz-20kHz
Sensitivity
91±3dB
Speaker Size
6”, Φ153mm
Connection Port
Black tip：COM    red tip：40W
Dimension
284*215*190mm
Package Size
310*240*200mm
N.W
3kg
G.W
3.2kg
