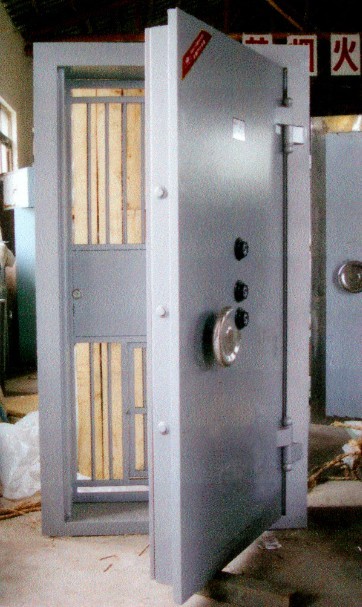

premium steel burglar resistance strong room door provides state-of–the-art appearance and operate easily.
The locking bar:
A full-length solid locking bar assures top-to-bottom contact with the door’s locking jamb. On the hinge side a fixed locking bar performs the same function.
The daygate:
The daygate is key-operated from both sides. A swinging gate is standard but a sliding gate is available as an option. Both gates can be mounted to operate either from the left or the right.
Flat sill:
To allow easy passage for teller cart, the sill has been designed to be at the same level with the floor of the inside and the outside of the vault.
The time lock:
In addition to the combination locks, Time lock assures security as long as the time lock is in good condition. The precision is available with two or three movements and can be set for time periods up to 144 hours.
Microswitch connection:
A built-in microswitch can be provided on the doorframe. The switch can be hooked up to the vault lights to have them turn on and off automatically and to the alarm system to activate it when the door is opened by unauthorized persons.
Maintenance-free finish:
All surface of the doors including the full-length locking bar, the door edges and the jamb, is in stainless steel finish.
Unsurpassed anti-burglary protection:
The entire door is reinforced with exclusive protective armor plate, which provides complete protection against torches, drills and explosive.
Three combination locks:
Three combination locks provide extra protection. Unlocking any two will open the door. The four-wheel combination locks are concealed behind a hinged front panel. When this panel opens its shields the combination locks to insure privacy when unlocking the door. When the combination lock is attacked, A relock device takes effect instantly.
| name |
Dimension of clear opening W*H （mm） |
Dimension of frame
W*H （mm） |
wall opening
W*H （mm） |
security Rate |
Netweight
(Kg) |
Total thickness of door(mm) |
Quantity of locks(set) made in china |
| premium steel strong room door |
1950*900 |
2150*1220 |
2290*1600 |
1 |
500 |
350 |
3 |
| 2000*900 |
2200*1220 |
2340*1600 |
1 |
500 |
350 |
3 |
| 1950*1000 |
2150*1320 |
2290*1700 |
1 |
500 |
350 |
3 |
| 2000*1000 |
2200*1320 |
2340*1700 |
1 |
500 |
350 |
3 |
1. It is designed and manufactured according to<<Vault Door>> (JR/T0001-2000) standard of Chinese Finance Trade and <<General technology condition of Vault door>>(GA/T 143-1996) standard of Chinese Security Trade. The power of attack resistance reaches the top rate: third.
2. The main door is made of 10mm thickness premium steel sheet, the exterior is enclosed with premium steel sheet, the interior is filled with special mix-filled material of burglary, fire, drill, shear resistance. With 3 sets of four-wheel combination locks made by china, we not only design the forms of unlocking, bur also set up the security relock system.
3. The products can be custom made. |
